Sapphire Window φ16x5
Name:Sapphire Window φ16x5
Diameter:D16mm +0/-0.1
Thickness:5mm +0/-0.2
Surface Flatness:λ/8 @633nm
Surface Quality:Scratch/ Digs 20/10
Material:Optical Grade Sapphire
Chamfer:Break Sharp Edges 0.1mm
Coating:Uncoated

Product Description

.Sapphire Windows

  This is a custom size high precision window as our customer's requests.

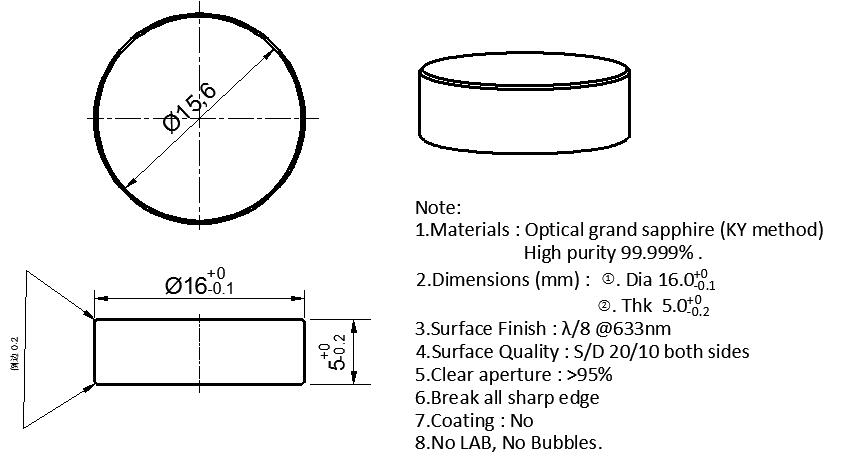

   Basic information:

   Diameter: φ16mm +0/-0.1mm

   Thickness: 5.0mm +0/-0.2mm

   Surface Quality: S/D 20/10 on both sides

   Surface Quality: λ/8 @633nm

   Break Sharp Edges

   Optical Grade Sapphire(KY method) No Bubbles, No Defects Inside.

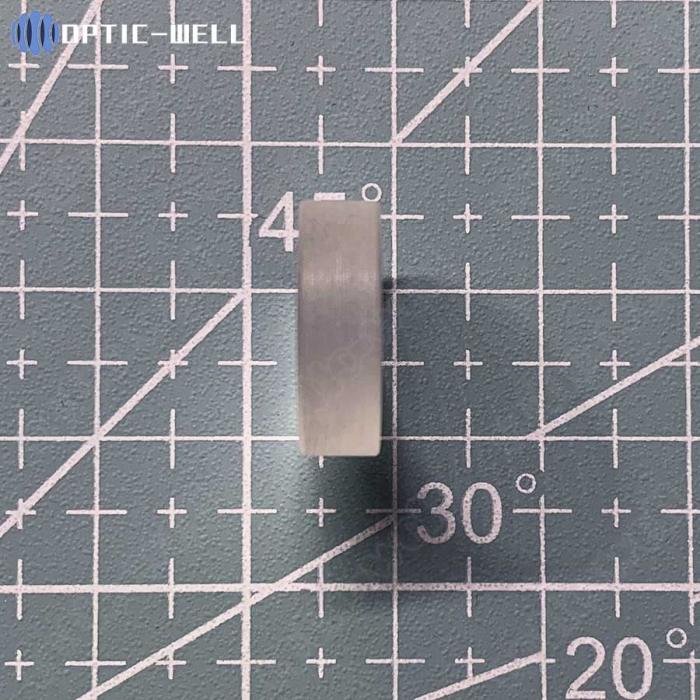

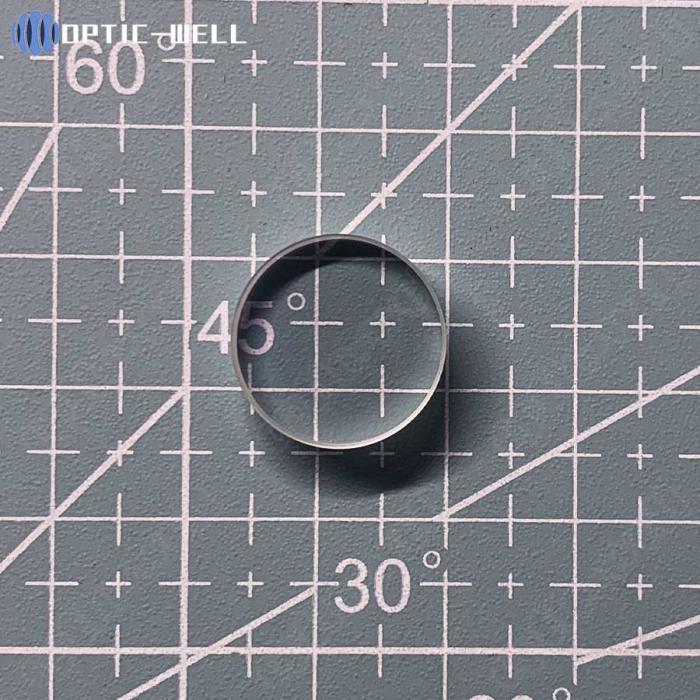

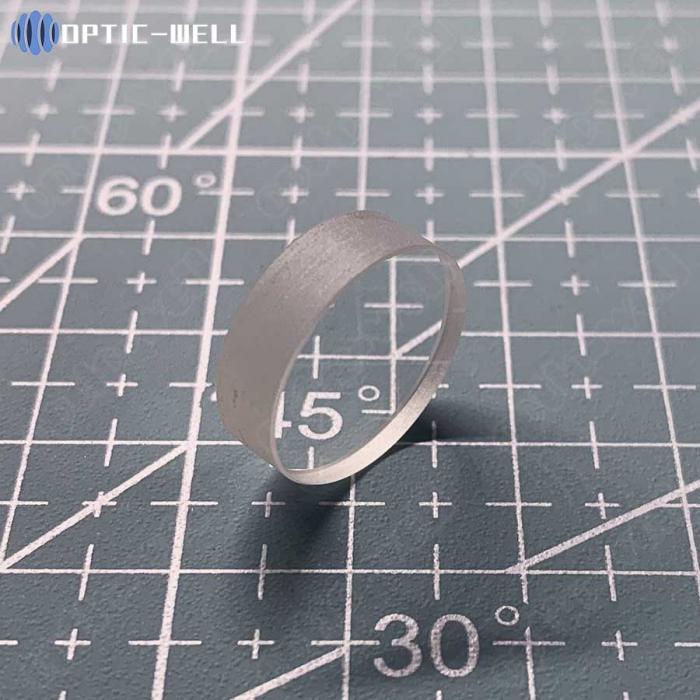

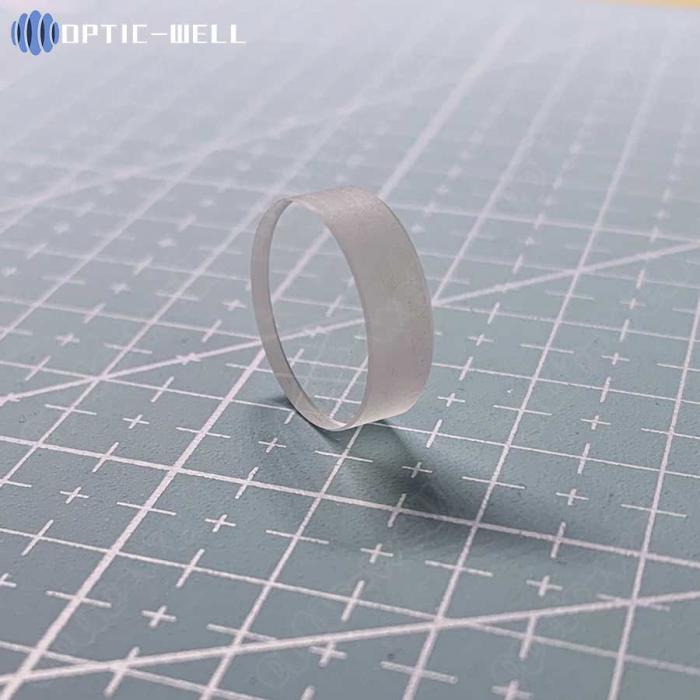

   precision sapphire window

   This precision window will coated by our customer and used as infrared window in a precision machine. So far, the customer was very satisfied with the products we are supplying.

    We have extra samples for you if you want to have a test of our precision sapphire window, please don't hesitate to contact us!



Contact Us For More!!!
