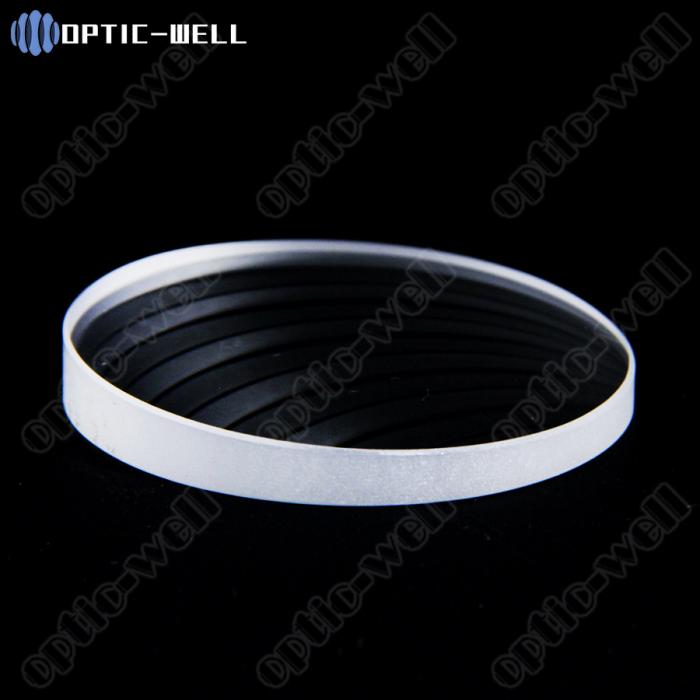

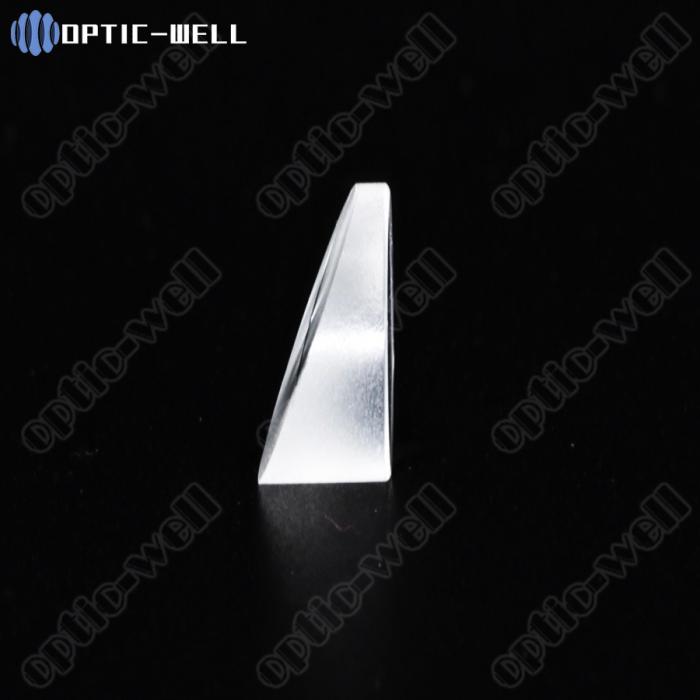

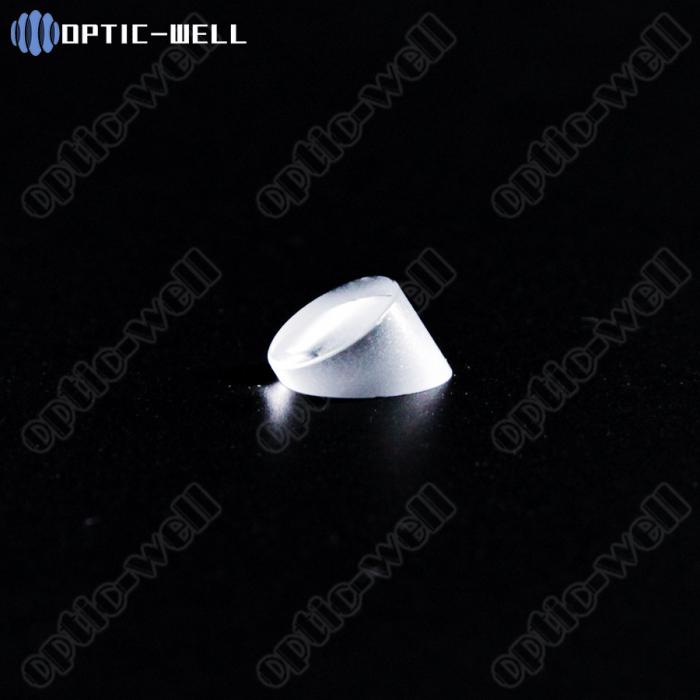

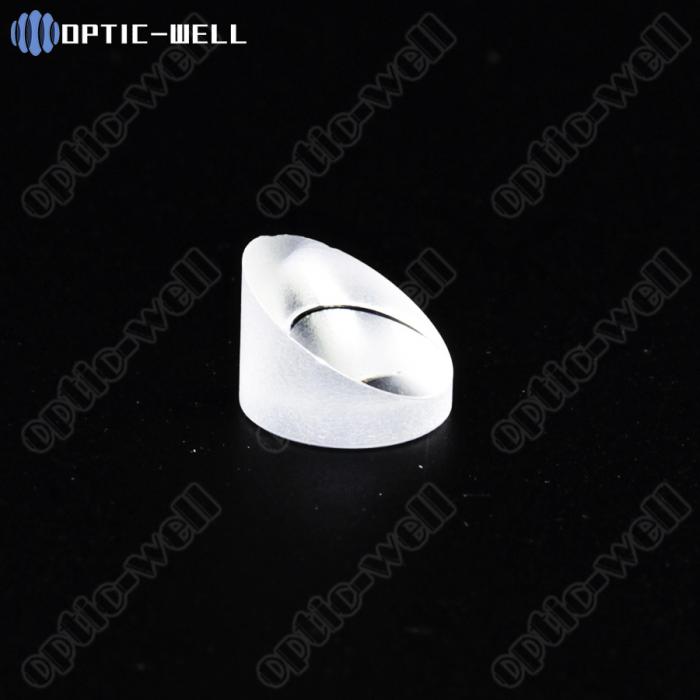

Sapphire Wedge Windows
Name:Sapphire Wedge Windows
Diameter:From 1 mm to 305 mm in any optical axis
Thickness:From 0.2mm Up To 50mm
Flatness:Can Be λ/10 @633nm or Better
Wedge:Any Degree As Customers Request
Surface Quality:S/D 80/60~20/10 per MIL-PRT-13830
Materials:Optical Grade Synthetic Sapphire Ky Method
MOQ:Depends On Size And Grade,Contact us
Delivery time:Usually 4 weeks after deposit received
Coating:Band Pass, Cut off, AR
Chamfer:Break all sharp edges

Product Description

.Sapphire Wedge Windows:

We can supply various angles sapphire wedge windows From Common usages to High Precision grade, Please let us know your applications if you don't know which standard you should choose.

Typical angles of Sapphire Wedges we supplied :

10°/ 15°/ 20°/ 30°/ 45°

For other specifications, please reference sapphire windows we are selling.


.Why Use Sapphire?

1.Excellent Moh's Hardness Upto 9H, Only Softer Than Diamond(10H), (Optical Glass 6~7)

2.Great Transmittance From 200nm~5000nm; AVG>85% @ Visible Light Freqency

3.No Attacked By Acid Or Alkalis, Only Attacked By HF At 300℃.

4.High Softening Point, Low Thermal Expansion.

5.Excellent Mechnical Properties.

We can also supply coating jobs, typical coating: AR/ Band Pass/ Cut off.
